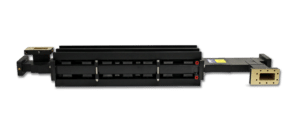

S-Band Distributed 4-Port Waveguide Circulator
15 MW Peak Power, 70 KW Average Power
Model #102637D
Unit Specifications
| Peak Power |
15 MW |
Center
Frequency
|
2.998 GHz
|
| Average Power |
70 KW |
|
|
| Flanges |
CPR284F |
VSWR
(Port 1)
|
1.10 max |
| Required Water Flow |
4 GPM @ full 70KW and 35 PSIG maximum input and pressure |
|
|
| Required Water Treatment |
Deionized Water |
|
|
| Water Temperature |
35º & 40ºC (tested and optimized @ 38ºC)
|
Isolation
(Port 1 to Port 4)
(Port 1 to Port 3)
|
>38 db
>32 db
|
| Gas Pressure |
35 PSIG SF 6 |
|
|
| Weight |
135 lbs (61.4 kg) |
|
|
| Length |
51″ (1303 mm) |
Insertion
(Port 1 to Port 2)
|
<0.25 db
|
Overview
This S-Band circulator is useful with new, high average power klystrons for isolating reflection from resonant loads such as accelerators or other similar devices. This circulator is set for the 2.998 GHz frequency, but can be readily optimized for other frequencies, including 2.856 GHz.
Note that every power input, Ports 1, 2, 3 and 4 have enlarged, thick flanges with channels for additional water cooling. Typically, in isolator applications, a good high power load should be attached to receive the reflected power.
This circulator is broadband, yet has very good narrow band specifications.
S Band 4 Port Circulator 70kw AVG.PDF
