Specializing in the design and fabrication of high power microwave waveguide components
Phase Shift Circulators & Isolators

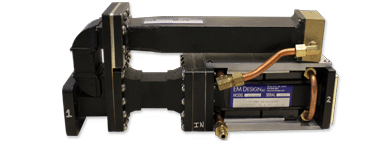

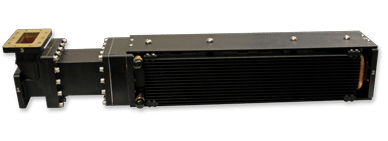

S-Band High Power Distributed 3-Port Circulator, 8 MW Peak Power, 35 KW Average Power

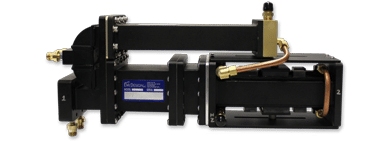

S-Band Distributed Air-Cooled 3-Port Circulator, 5 MW Peak Power, 1.7 KW Average Power

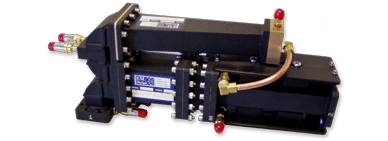

S-Band Distributed 4-Port Waveguide Circulator, 15 MW Peak Power, 70 KW Average Power

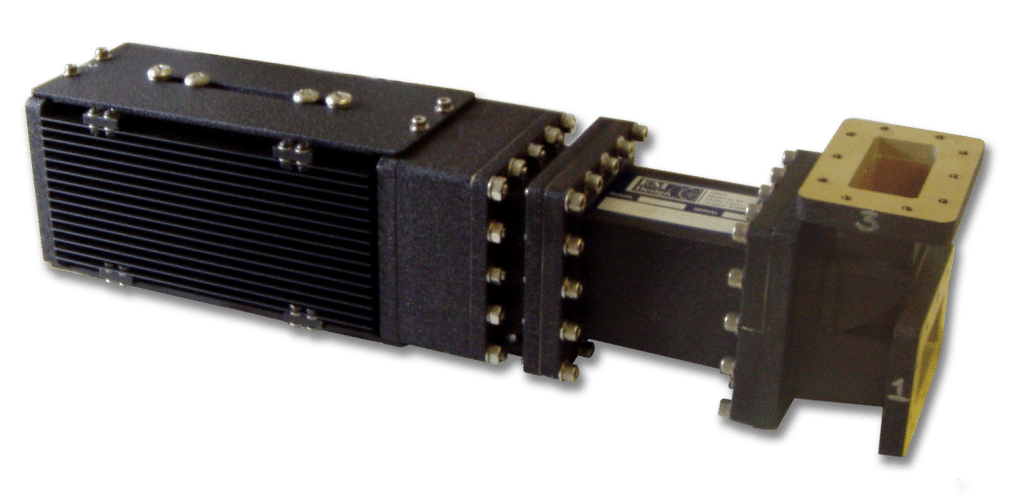

S-Band Distributed 3-Port Isolator Assembly, 8 MW Peak Power, 8 KW Average Power

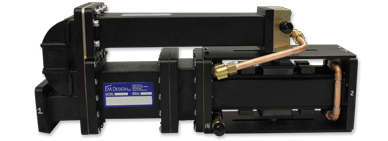

S-Band Distributed 3-Port Isolator Assembly, 8 MW Peak Power, 8 KW Average Power

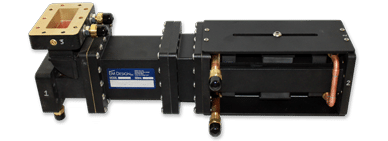

S-Band Distributed 3-Port Isolator Assembly, 8 MW Peak Power, 8 KW Average Power
S-Band Distributed 3-Port Waveguide Circulator, 8 MW Peak Power, 10 KW Average Power

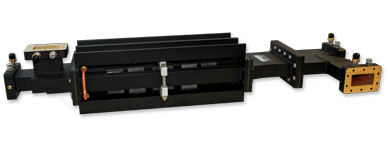

S-Band Conventional 4-Port Circulator, 15 MW Peak Power, 40 KW Average Power

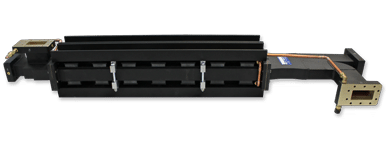

C-Band Distributed 3-Port Isolator Assembly, 2.6 MW Peak Power, 0.6 KW Average Power
