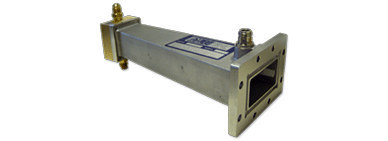

S-Band Waterload
30 MW Peak Power, 8 KW Average Power
Model #V284-3.0, Patent No. 4,516,088
Unit Specifications
| Peak Power |
30 MW |
Center
Frequency
|
2.998 GHz |
| Average Power |
9 KW (max) |
VSWR
|
1.10 max |
| Flanges |
Varian Flat |
|
|
| Water Flow |
4 GPM |
|
|
| Water Temperature |
50º C
(Nominal)
|
|
|
| Gas Pressure |
34 PSIG SF 6 @ Peak Power |
|
|
| Length |
11.5″ (292 mm) |
|
|
| Material |
Guide Body – Aluminum Water Manifold – Brass & Polypropylene |
|
|
| Water Connection |
Brass Elbows (Parker 45º Flare X-48F-6-6) |
|
|
| Coupling (Type N Female) |
-60 db @ 3.0 GHz |
|
|
Overview

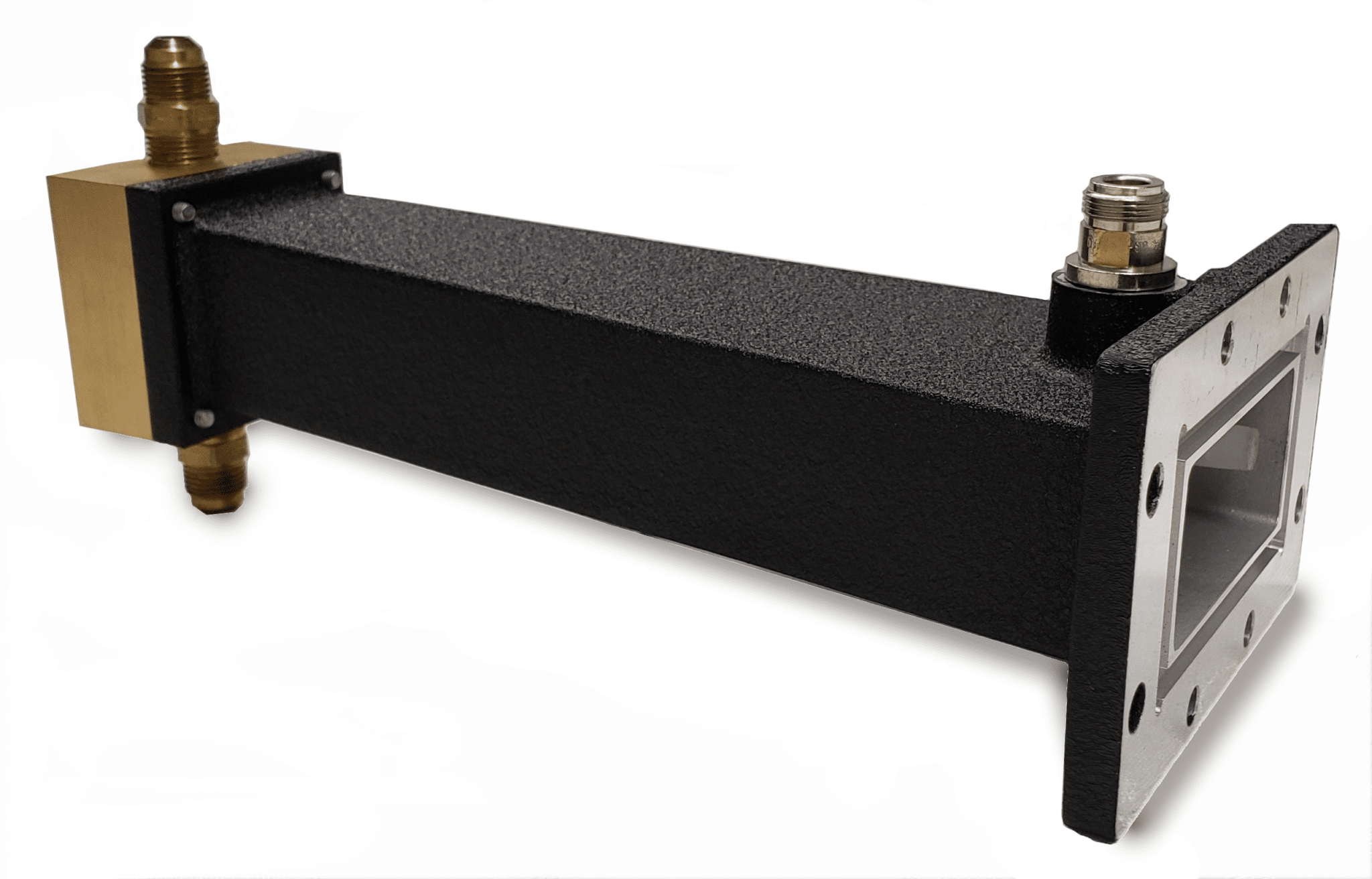

This water load has the Varian grooved flange and a -60 db E-field probe. As in the R284-3.0, this high power load is very useful for converting a circulator into an isolator. The broad band performance of the load is especially useful for magnetron applications because it absorbs the spurious signals, as well as the desired fundamental, with equal efficiency.
It is an extremely broadband water load that covers almost the entire bandwidth of the WR284 waveguide.
