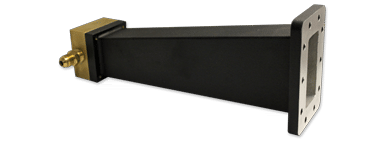

S-Band Waterload
30 MW Peak Power, 9 KW Average Power
Model #R284-3.0
Unit Specifications
| Peak Power |
30 MW |
Center
Frequency
|
2.998 GHz |
| Average Power |
9 KW (max) |
VSWR
|
1.10 max |
| Flanges |
Varian Flat |
|
|
| Water Flow |
4 GPM |
|
|
| Water Temperature |
50º C
(Nominal)
|
|
|
| Gas Pressure |
34 PSIG SF 6 @ Peak Power |
|
|
| Length |
11.5″ (292 mm) |
|
|
| Material |
Guide Body – Aluminum Water Manifold – Brass & Polypropylene |
|
|
| Water Connection |
Brass Elbows (Parker 45º Flare X-48F-6-6) |
|
|
| Coupling (Type N Female) |
-60 db @ 3.0 GHz |
|
|
Overview
This high power water load is very useful for converting a circulator into an isolator. The broad band performance of the load is especially useful for magnetron applications because it absorbs the spurious signals, as well as the desired fundamental, with equal efficiency.
It is an extremely broadband water load that covers almost the entire bandwidth of the WR284 waveguide. Another option for your system may be the R284-3.0 Waterload with Integrated Tuner.
S Band Waveguide Waterload.PDF
Patent No 4,516,088

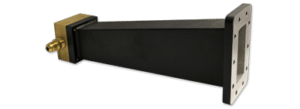

S-Band Waterload
30 MW Peak Power, 9 KW Average Power
Model #R284-3.0
Unit Specifications
Frequency
(Nominal)
Overview
This high power water load is very useful for converting a circulator into an isolator. The broad band performance of the load is especially useful for magnetron applications because it absorbs the spurious signals, as well as the desired fundamental, with equal efficiency.
It is an extremely broadband water load that covers almost the entire bandwidth of the WR284 waveguide. Another option for your system may be the R284-3.0 Waterload with Integrated Tuner.
S Band Waveguide Waterload.PDF
Patent No 4,516,088
